OCEAN ECO EXPLORER
The OE90 EX fuses form and function together in a stylistic yet practical new design. Integrated owners cabin at the flybridge with comfortable interior and exterior entertaining spaces all on a proven, very stable, and efficient catamaran hull form for long range cruising.

Exterior Design

Large beach club watersports and entertaining areas coupled with spacious above deck living and entertaining zones provide modern ocean lifestyle.

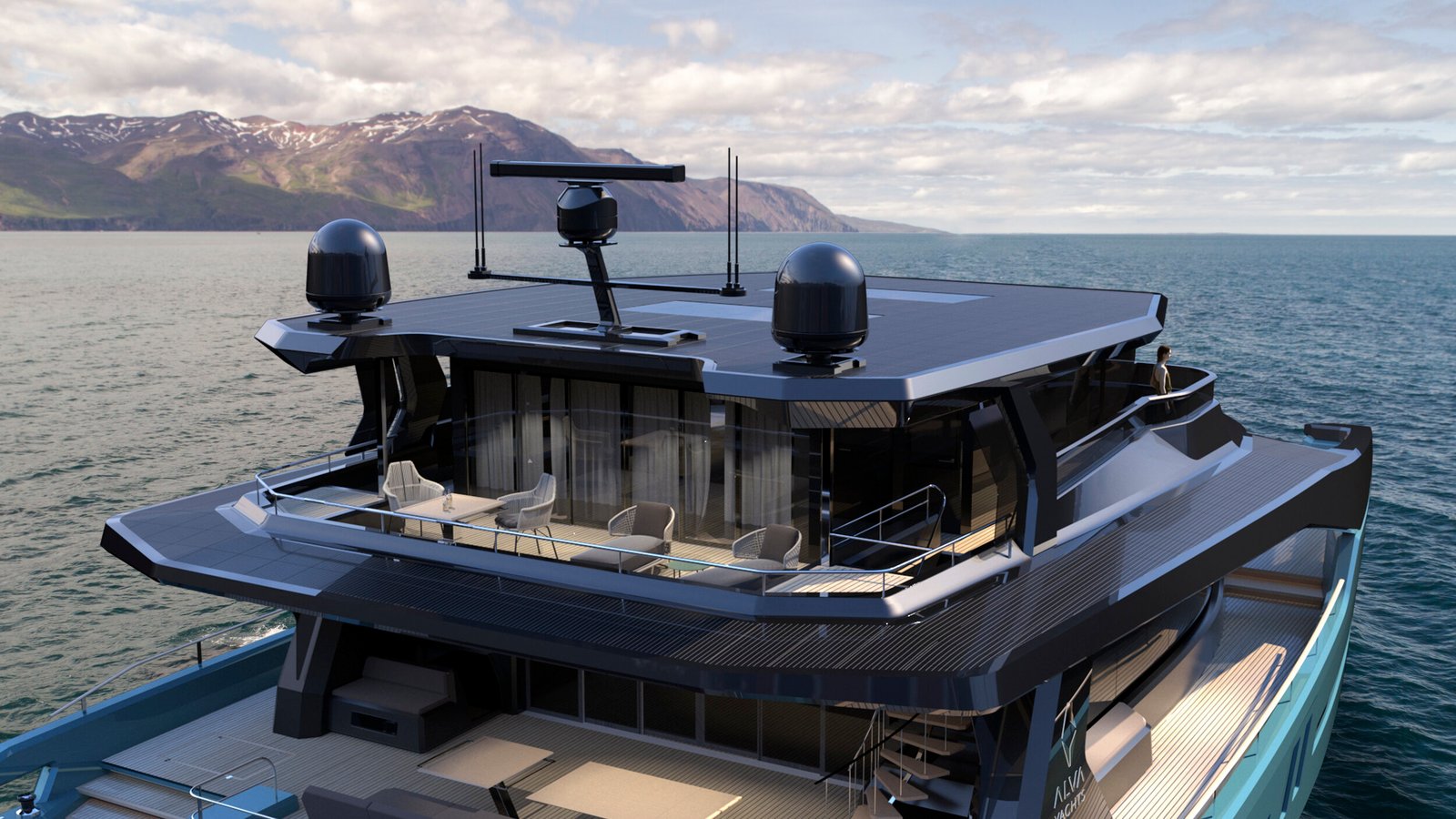

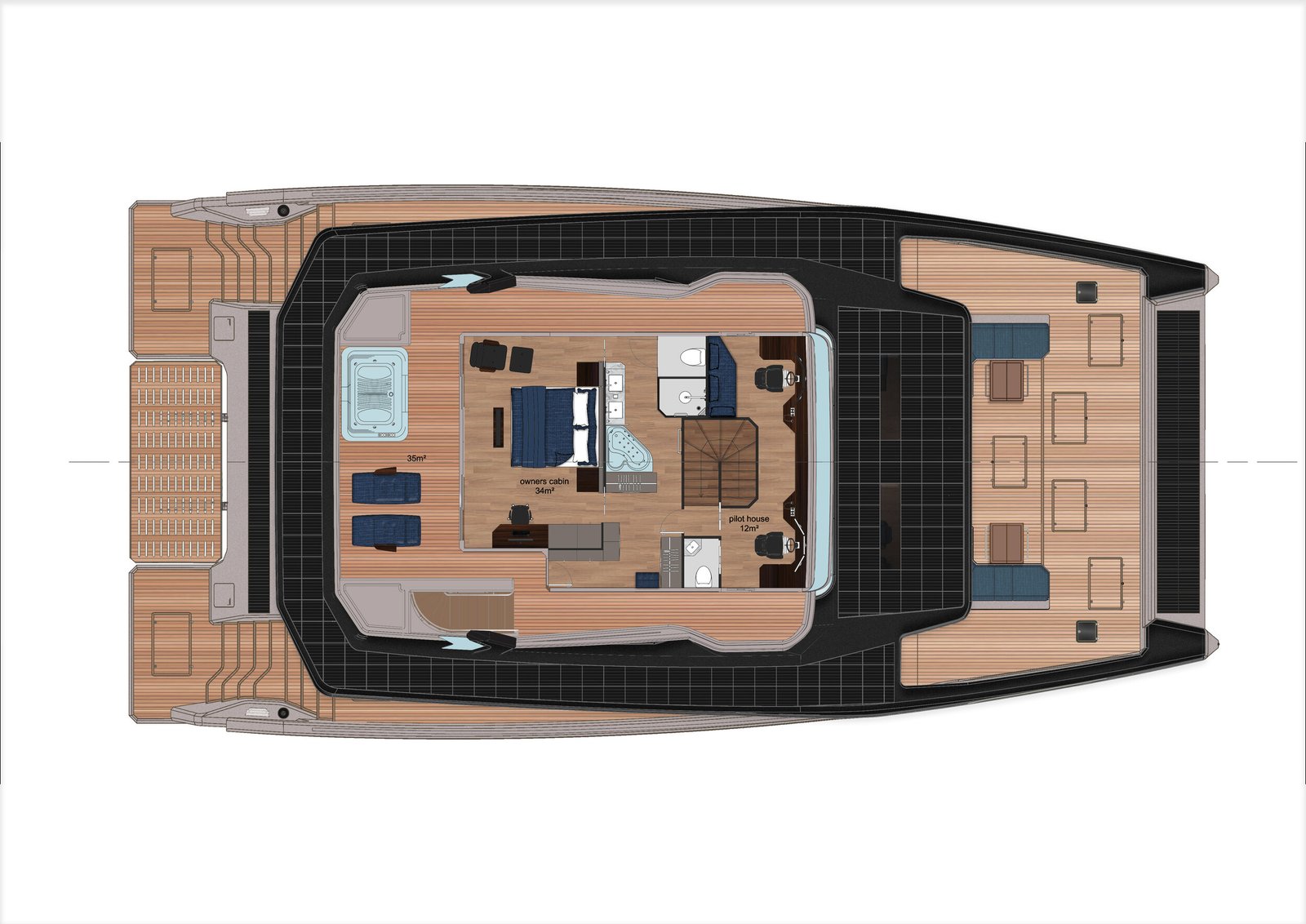

An integrated owner’s cabin &pilothouse with full walkarounds provides excellent 360-degree view.

Technical Data / Design draft:

Length Overall: 27.50 m
Length of waterline: 27.00 m
Beam: 14.00 m
Draft: 1.2 m*
Displacement: (LD) 94,000kg

Engine:
Full Electric Version: OCEAN ECO 90f -EL
2x 500 kW gearless electric drive & 2x 100 kVA DC- Generator
Hydrogen Fuel cell with Hydrogen storage tanks as an option
Hybrid Diesel-Electric Version : OCEAN ECO 90f-HY
2x 250 kW gearless electric drive & 2x 456 KW diesel engine,
gearbox, clutch, common shaft - with 5 different drive modes

Cruising Speed: 8-10 kn, Top Speed 15-16 kn depends on configuration
Solar Input: 40 kWp , with „ Solar Roof“ glass tiles
Batterie capacity: 240 kWh – 360 kWh
Fuel: 1.500 Ltr / 396 US gal.- 5.000 Ltr / 1.320 US gal.
Fresh Water: 1.500 Ltr / 396 US gal.- 3.000 Ltr / 793 US gal.
Water Maker: 280 Ltr/h – 74 US gal./h
Hot Water: 200 Ltr / 53 US gal.
Grey water: 2x 200 Ltr / 2x53 US gal.
Black water: 2x 200 Ltr / 2x53 US gal.
Shore power: 32 Amp
Air-Conditioning: 35 kW / 120.000 BTU frequency driven compressor
chilled/ warm - water, reversed cycle system, super-silent fan coils

Wastewater Treatment System available

Classification: German Lloyd / private Yacht
